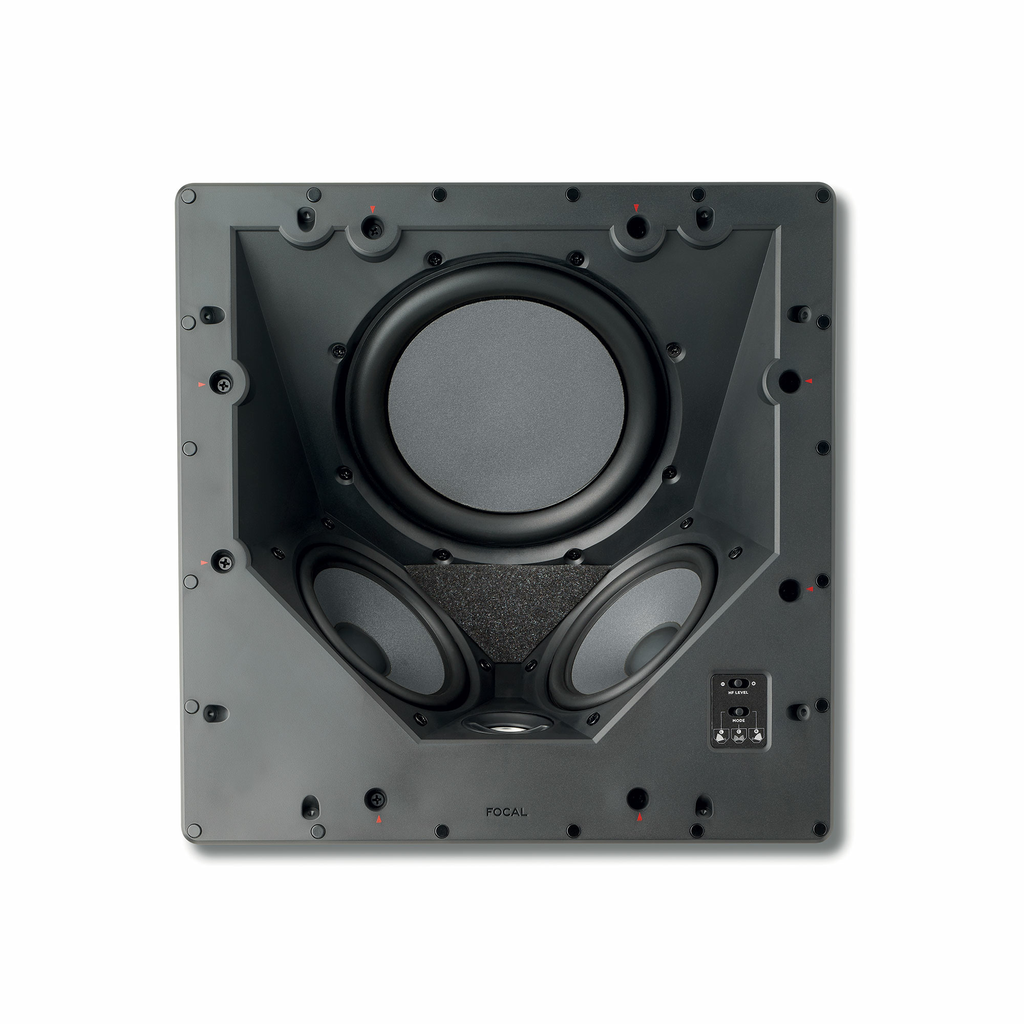

Focal 100 ICLCR5
2-way ceiling speaker
100 ICLCR5 is a compact, high-performance in-ceiling speaker. Combined with conventional or wall-mounted speakers, it is the perfect complement to a home theater installation (dedicated room, living room...). It is also ideal for large rooms with no rear wall to the listening point.
CUSTOM INSTALLATION
To complete your hi-fi or Home Cinema installation, the loudspeaker has five possible in-ceiling applications: front left, center or right channels - rear left and right channels.
SOUND BALANCE
Thanks to its adjustable tweeter (20°) and two 13 cm Polyglass cone drivers, the loudspeaker delivers smooth, precise treble and defined midrange. A left, center and right selector ensures the same sound regardless of the listening position.
SOUND ADJUSTMENT
Treble levels can be adjusted in three positions (-3 dB, 0 dB and +3 dB), allowing you to optimize the loudspeaker's performance according to the room's acoustics. In addition, three-position correctors (left, center or right) adapt the loudspeaker's directionality curve to deliver the same sound everywhere.
Technical data:
Product type : 2-way ceiling
Membrane : Polyglass
Medium : 2x5" (13cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 55 Hz
Frequency response (+/- 3dB) : 65 Hz - 23 kHz
Minimum impedance : 4.6 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 25 - 120 W
Sensitivity : 92 dB
Height : 354 mm / 13.94 inch
Width : 354 mm / 13.94 inch
Depth : 150 mm / 5.83 inch
Weight : 5.3 kg /
Allowable ceiling thickness (min) : 8 mm / 0.3125 inch
Allowable ceiling thickness (max) : 60 mm / 2.37 inch
Mounting height : 328 mm / 12.4 inch
Mounting width : 328 mm / 12.94 inch
Depth behind surface (Mounting depth) : 6 in / 6 inch
