Focal 100 IWLCR5

Thanks to its sound performance and compactness, this LCR (left, center, right) integrated speaker is the perfect complement for home theater use, but is also compatible with any room in the house. Its Appolito configuration, with the tweeter placed between two bass-midrange drivers, ensures high power handling and better directivity control.

PRECISE ACOUSTICS

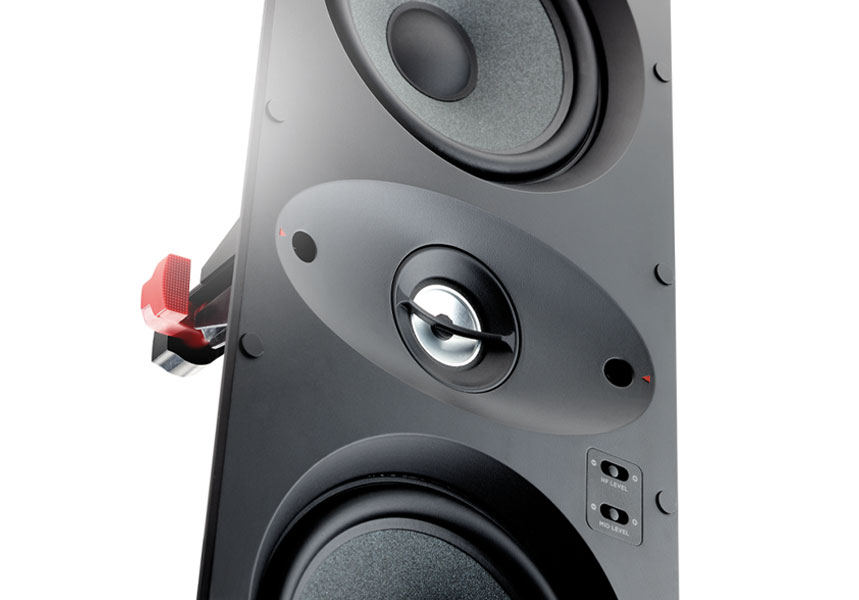

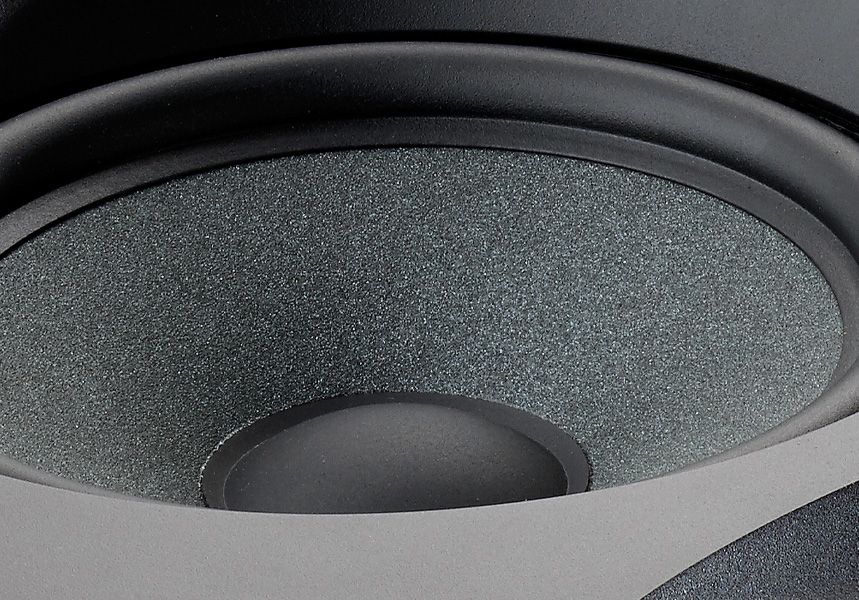

100 IWLCR5 features an adjustable inverted dome tweeter. Its 13 cm loudspeakers feature Polyglass diaphragms for excellent damping and well-defined midrange. Correctors are used to equalize high and mid frequencies, for an ever more appropriate acoustic response.

POLYVALENCE

The loudspeaker can be used horizontally for Home Cinema installations. A three-position switch allows you to define the left, center or right function, to guarantee identical tonal balance at the listening point.

DESIGN AND DISCRETION

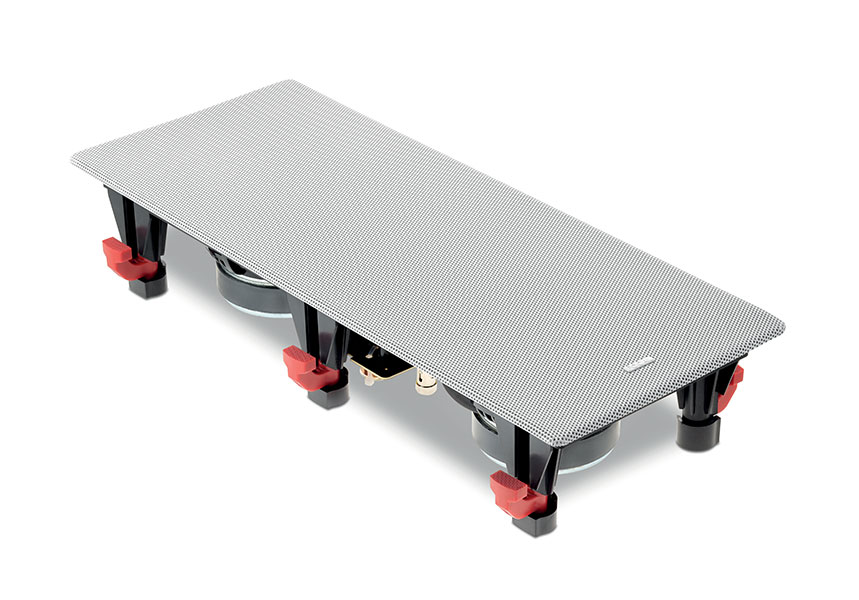

Thanks to its shallow depth and ready-to-paint magnetic grille, 100 IWLCR5 will fit in anywhere, easily and discreetly.

Product type : 2-way Appolito wall

Membrane : Polyglass

Medium : 2x5" (13cm) Polyglass Midbass

Response at - 6dB (Low frequency point) : 43 Hz

Frequency response (+/- 3dB) : 55 Hz - 23 kHz

Minimum impedance : 3.8 Ω

Nominal Impedance : 8 Ω

Recommended amplifier power : 25 - 120 W

Sensitivity : 90.5 dB

Height : 86 mm / 3.37 inch

Width : 440 mm / 17.31 inch

Depth : 173 mm / 6.81 inch

Weight : 2.9 kg /

Allowable ceiling thickness (min) : 8 mm / 0.3125 inch

Allowable ceiling thickness (max) : 35 mm / 1.37 inch

Depth behind surface (Mounting depth) : 3.25 in / 3.25 inch
